Hogar > productos > rj45 Jack modular > LPJK2065AONL Rj45 1x 10/100/1000Mbps, poder sobre Ethernet del gigabit (PoE)

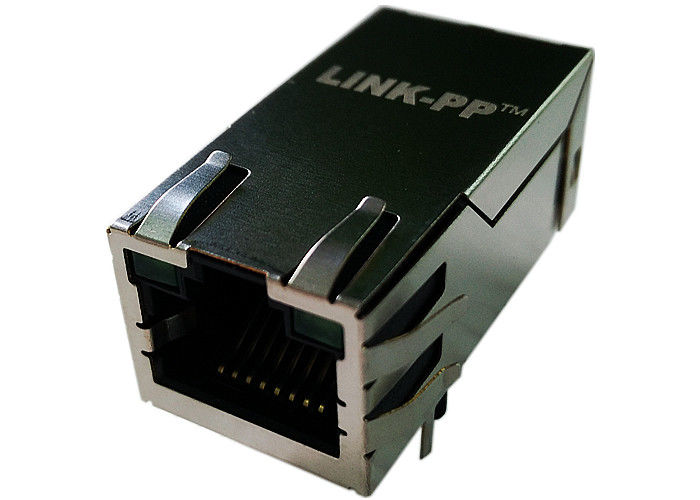

LPJK2065AONL Rj45 1x 10/100/1000Mbps, poder sobre Ethernet del gigabit (PoE)

Detalles del producto

Lugar de origen: China

Nombre de la marca: LINK-PP

Certificación: UL,ROHS,Reach,ISO

Número de modelo: LPJK2065AONL

Pago y términos de envío

Cantidad de orden mínima: 50/500/1000/25K

Precio: $0.05-$1.28

Detalles de empaquetado: 50PCS/Tray, 1200pcs/Carton

Tiempo de entrega: Común

Condiciones de pago: TT, días NET30/60/90

Capacidad de la fuente: 4200K-PCS/Month

Consiga el mejor precio
Punto culminante:

enchufes modulares rj45

,

conector industrial rj45

Especificación:
LPJK2065AONL
No parte:
LPJK2065AONL
Ethernet:
1GbE puerto POE de apoyo
Dé vuelta al ratio:
1:1
Montaje:
90 grados de ángulo recto
muestras:
Disponible
Especificación:
LPJK2065AONL
No parte:
LPJK2065AONL
Ethernet:
1GbE puerto POE de apoyo
Dé vuelta al ratio:
1:1
Montaje:
90 grados de ángulo recto
muestras:
Disponible
LPJK2065AONL Rj45 1x 10/100/1000Mbps, poder sobre Ethernet del gigabit (PoE)

LPJK2065AONL Rj45 1x 10/100/1000Mbps, poder sobre Gigabit Ethernet (PoE)

  • Ethernet de LPJK2065AONL 10/100/1000 Mbps
  • Rj45 1x Gigabit Ethernet (10/100/1000)
  • Poder de IEEE 802.3af sobre Ethernet (PoE)
  • Disposición integrada del PWB del Magnetics Rj45
  • Cuerpo largo POE magnético Rj45

Especificaciones eléctricas @25℃
1.Inductance: minuto 350uH
@ 100KHz, 0.1V, PREJUICIO de 8mA DC
ratio 2.Turns (el ±2%):
TX=1CT: 1CT RX=1CT: 1CT
pérdida 3.Insertion (DB máximo):
0.1-1MHz: - 1,1 1-65MHz: - 0,5
65-100MHz: - 0,8 100-125MHz: - 1,2
pérdida 4.Return (minuto del DB):
0.5-40MHz: - 18
40-100MHz: - [12+20LOG (f/80MHz)]
5.Crosstalk:
0.1-100MHz: - [33+20LOG (f/100MHz)]minuto del DB
los 6.CM A CM REJ:
0.1-100MHz: - minuto 30dB
los 7.CM A DM REJ:
0.1-100MHz: - minuto 35dB
8.Designed para dirigir 600mADC y para encontrar 802.3at.
9.Hipot: 1500Vrms minuto @60Hz
temperatura 10.Operating: 0℃~70℃.
