Hogar > productos > Conector RJ45 de POE > poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL

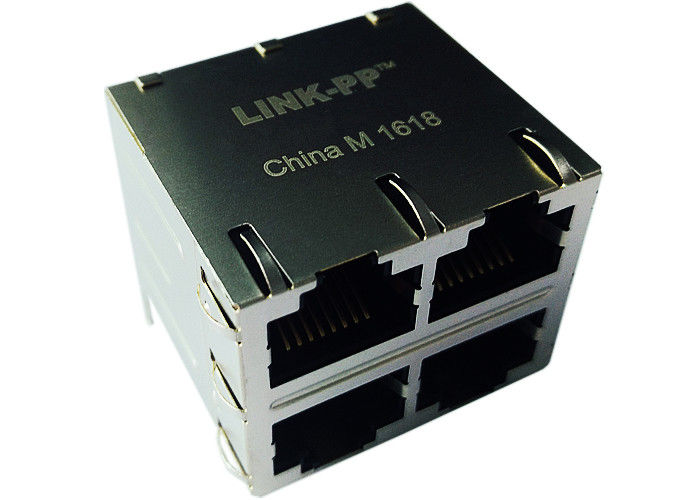

poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL

Detalles del producto

Lugar de origen: Guangdong, China

Nombre de la marca: LINK-PP

Certificación: ISO9001,SGS,UL,CE,REACH

Número de modelo: 0833-2X2R-AS-F

Pago y términos de envío

Cantidad de orden mínima: 50/500/1000/25K

Precio: $0.09-$1.85

Detalles de empaquetado: 18PCS/Tray, 18Trays/Carton, 324PCS/Carton, tamaño 37*30*30, peso 11KG

Tiempo de entrega: Común

Condiciones de pago: TT, días NET30/60/90

Capacidad de la fuente: 3000000/mes

Consiga el mejor precio
Punto culminante:

pinout del poe rj45

,

Enchufe dual Rj45

Especificación:
0833-2X2R-AS-F
Cruz:
LPJ27499CNL
Munafactuer original:
LINK-PP
Ethernet:
poder 10/100Mbps sobre Ethernet
HiPot:
2250V rms
muestras:
Disponible
Especificación:
0833-2X2R-AS-F
Cruz:
LPJ27499CNL
Munafactuer original:
LINK-PP
Ethernet:
poder 10/100Mbps sobre Ethernet
HiPot:
2250V rms
muestras:
Disponible
poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL

Poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL

  • Poder Rj45 sobre Ethernet Pinout
  • Especificación # 0833-2X2R-AS-F
  • Parte cruzada: LPJ27499CNL
  • El Lan 2x2 cuatro 10/100BASE-TX ayuna los puertos Ethernet
  • IEEE 802.3af PoE

poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL 0



SPECFICATIONS ELÉCTRICO @25℃
ratio 1.Turn (%%P el 3%):
TX=1CT: 1CT RX=1CT: 1CT
2.Inductance OCL:
350uH prejuicio del MINUTO @ 100KHz 0.1V 8mA DC
pérdida 3.Insertion:
-1.0dB MAX @ 1-100MHz
pérdida 4.Return:
MINUTO @ 1-30MHz de -18dB
MINUTO @ 30-60MHz de -15dB
MINUTO @ 60-100MHz de -12dB
charla 5.Cross:
MINUTO @ 1-30MHz de -40dB
MINUTO @ 30-60MHz de -35dB
MINUTO @ 60-100MHz de -30dB
rechazo del modo 6.Common:
MINUTO @ 1-100MHz de -30dB
prueba 7.Hipot: 2250Vrms
gama de temperaturas 8.Operating: -40℃ A +85℃

poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL 1 poder 0833-2X2R-AS-F sobre Ethernet (PoE) Rj45 el 10/100M IEEE 802.3af LPJ27499CNL 2
