Datos del producto:
Pago y Envío Términos:
|
| Especificación: | LFE8659 | Dé vuelta al ratio: | 1:1 |
|---|---|---|---|
| Velocidad: | 10/100Base-T | Puerto: | Individual |
| Aplicación: | Ethernet (NO PoE) | Montaje: | SMD |
| la temperatura: | 0 A + 70℃ | Archivi Disponibil: | PDF/3D/ISG/Stp/Step/Datasheet |
| Punto culminante: | Magnetics 10/100Base-T,Transformador de Ethernet |
||

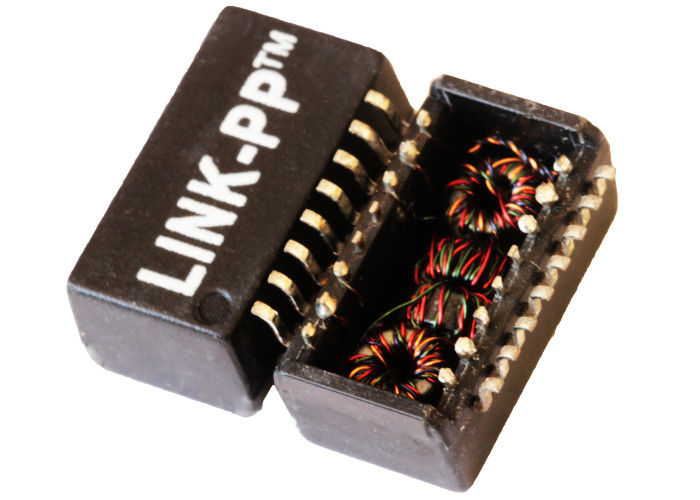

| LFE8659 => LP1302NL | módulo del transformador 10/100BT | Transformador del Lan |
|---|
filtro del Lan del puerto 1.Single
2.ColiStructure: Toroidal
transformador de 3.10/100 bases-t
4.SMT, 16pins
Especificaciones eléctricas @25℃:
ratio 1.Turns:
TX=1CT: 1CT RX=1CT: 1CT
pérdida 2.Insertion:
0.1-100MHz: - 1.1dB MAX
pérdida 3.Return (TIPO del DB):
30MHz: - 16 60MHz: - 10
80MHz: - 10
4.Crosstalk (TIPO del DB):
30MHz: - 35 60MHz: - 30
100MHz: - 30
5.DCMR (TIPO del DB):
30MHz: - 42 50MHz: - 37
100MHz: - 32
6.Hipot: MINUTO 1500Vrms
temperatura 7.Operating: 0~70℃
| Cruz de los módulos LP1302NL del transformador del puerto de Ethernet de LFE8659 10/100Base-T sola | |||
|---|---|---|---|
| TG110-050N5RL | PG4P219AN-2 LF | GST5009-E LF | LFE8659 |
| H4P140NX LF | HG5PNX LF | GST5009H LF | TS6121CX |
| H4P041RNX LF | LFE8659 | TG110-050N5RL | TS6121K |
| HG2PM109N LF | BCM-5855CI LF | G4P109 LF | LFE8659 |
| HF 40SS1040AXM2 | HF 4S1068 | G4P209 LF | TS8121C |
| HF 40SS1041A | HF 4S1070 | LFE8659 | TS8121CX |
| HF 40SS1041AX | HF 4S1142 | GOP109 LF | S5833H LF |
| HF 40SS1041RX | 4S1344M1 LF | TG110-050N5RL | 12ST0020P LF |
| LFE8659 | LFE8659 | GP5409 LF | 12ST0022P LF |
| HF 40SS1140AX1 | S6800 LF | GP5419NY LF | 12ST0022PF LF |
| TG110-050N5RL | HF DE S1188M | TG110-050N5RL | TG110-050N5RL |
| HF 40SS1041 | S5498 LF | GP5419R LF | LFE8659 |
| HF 40ss1041AXM | S5612 LF | LFE8659 | HF 24SH10410 |
