Detalles del producto
Lugar de origen: Porcelana
Nombre de la marca: LINK-PP
Certificación: ISO 9001,ISO 14001,UL,SGS,REACH168
Número de modelo: LPJK7403B97NL
Documento: LPJK7403B97NL.pdf
Pago y términos de envío
Cantidad de orden mínima: 50 piezas
Precio: $0.7-$1.05
Detalles de empaquetado: T&R
Tiempo de entrega: En el barco de existencias dentro de los 3 días
Condiciones de pago: TT, NET30/60/90 Días
Capacidad de la fuente: 5kk/mes
P/N: |
LPJK7403B97NL |
Número de puertos: |
1x1 |
Pestillo: |
Arriba |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
sin |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |
P/N: |
LPJK7403B97NL |
Número de puertos: |
1x1 |
Pestillo: |
Arriba |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
sin |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |

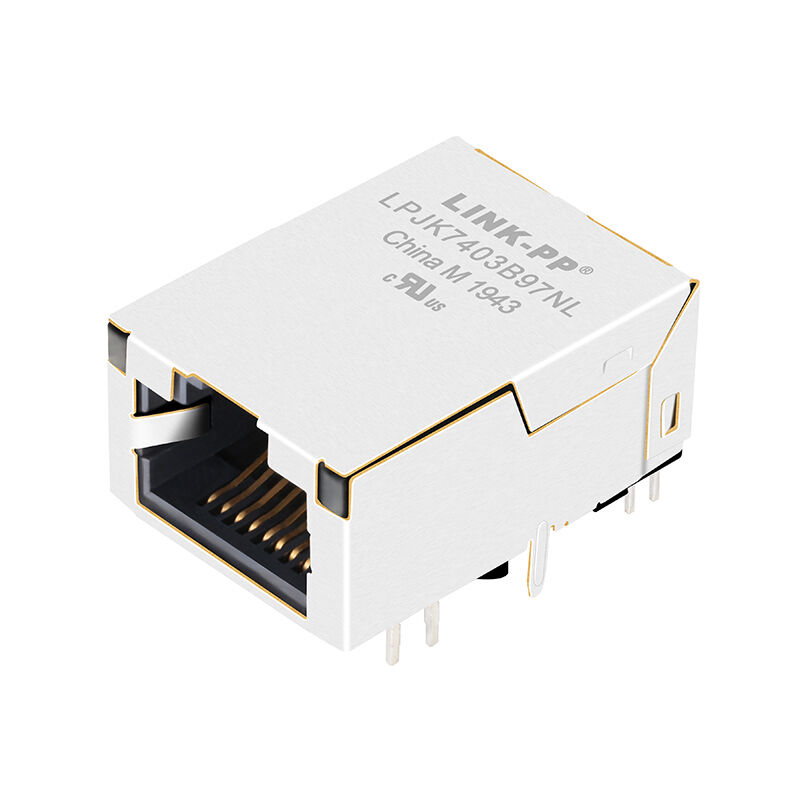

The LINK-PP LPJK7403B97NL is a premium-grade, single-port (1x1) Gigabit RJ45 Magjack connector engineered for 1000Base-TX networking applications. Featuring integrated magnetics, this right-angle, through-hole connector ensures superior signal integrity and EMI suppression for high-speed Ethernet environments. Built to withstand industrial operating temperatures from -40 to +85 Celsius and equipped with customizable LED indicators, the LPJK7403B97NL is the reliable choice for networking hardware, telecommunications, and industrial automation designs.
The LPJK7403B97NL is a high-performance 1×1 Gigabit Ethernet RJ45 MagJack designed for 1000Base-TX networking applications. Featuring integrated magnetics, 1500Vrms isolation, dual-color LED indicators, and industrial-grade operating temperatures from -40°C to +85°C, this connector provides a reliable and space-saving solution for modern Ethernet equipment.
Manufactured by LINK-PP, the LPJK7403B97NL complies with IEEE 802.3 requirements, making it suitable for networking devices that demand robust EMI performance, signal integrity, and long-term reliability.
- Gigabit Speed: Optimized for 1000Base-TX Ethernet applications.
- Integrated Magnetics: 350uH minimum OCL with 8mA bias ensures robust data transmission.
- Extreme Temperature Durability: Reliable operation in harsh environments (-40 to +85 Celsius).
- High-Quality Shielding: SUS 304-1/2H shielding with nickel plating for excellent EMI protection.
- Global Compliance: IEEE 802.3 compliant, UL Certified (E484635), and RoHS compliant.
| Parameter | Specification |
|---|---|
| Part Number | LPJK7403B97NL |
| Manufacturer | LINK-PP INT'L TECHNOLOGY CO., LIMITED |
| Connector Type | RJ45 MagJack (12P8C, Ethernet) |
| Speed | 1000Base-TX (Gigabit Ethernet) |
| Number of Ports | 1×1 Port |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle (Side Entry) |
| Latch Orientation | Latch Up |
| PoE Function | Non-PoE |
| EMI Shield Tabs | Without |
| Left LED | Yellow / Green (Pins 15, 16, 17) |
| Right LED | Green (Pins 13, 14) |
| Package Length | 0.953 Inches / 24.20 mm |
| Package Width | 0.701 Inches / 17.80 mm |
| Package Height | 0.445 Inches / 11.30 mm |
| Parameter | Specification |
|---|---|
| Test Condition | 25°C |
| Turns Ratio (±2%) | 1CT:1CT |
| OCL (Open Circuit Inductance) | 350μH Min @ 100kHz, 100mVrms, 8mA DC Bias (0°C to 70°C) |
| Insertion Loss (0.5–100MHz) | -0.8dB Max |
| Insertion Loss (100–125MHz) | -1.2dB Max |
| Return Loss (0.5–40MHz) | -18dB Min |
| Return Loss (50–100MHz) | -[12-20LOG(f/80MHz)] dB Min |
| Crosstalk (0.5–40MHz) | -35dB Min |
| Crosstalk (40–100MHz) | -[33-20LOG(f/50MHz)] dB Min |
| Common Mode Rejection Ratio (CMRR) | -30dB Min (0.5–100MHz) |
| Isolation Voltage | 1500Vrms (PHY Side to Line Side) |
| Operating Temperature | -40°C to +85°C |
| Parameter | Specification |
|---|---|
| Standards Compliance | Meets IEEE 802.3 Specification |
| Housing Material | Thermoplastic PBT, UL94V-0 |
| Contact Material | High-Grade Copper Alloy |
| Shield Material | SUS 304-1/2H, Thickness: 0.2mm |
| Shield Plating | Nickel |
| Contact Plating | Gold, 6μin Minimum in Contact Area |
| Wave Solder Temperature | 250°C for 5 Seconds |
Designed to support a wide range of high-speed networking applications, including:
The LPJK7403B97NL is an integrated RJ45 MagJack connector that combines a standard RJ45 interface with built-in LAN transformer components. By integrating magnetics inside the connector housing, PCB space requirements are reduced while maintaining excellent signal performance and electrical isolation.
Compared with discrete Ethernet transformer solutions, an integrated 1000Base-TX RJ45 connector with magnetics simplifies board design, shortens development cycles, and improves overall system reliability.
