Detalles del producto
Lugar de origen: Porcelana
Nombre de la marca: LINK-PP
Certificación: UL,ROHS,Reach,ISO
Número de modelo: Se trata de un sistema de control de las emisiones de gases de escape.
Documento: LPJG4801GENL.pdf
Pago y términos de envío
Cantidad de orden mínima: 50/500/1000
Precio: $0.95
Detalles de empaquetado: 50pcs/tray, 1200pcs/carton
Tiempo de entrega: en Stock Ship Hoy
Condiciones de pago: TT, NET30/60/90 días
Capacidad de la fuente: 4600K.PCS/mes
Número de pieza: |
Se trata de un sistema de control de las emisiones de gases de escape. |
Número de puertos: |
1x1 |
Pestillo: |
Abajo |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
Con |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |
Número de pieza: |
Se trata de un sistema de control de las emisiones de gases de escape. |
Número de puertos: |
1x1 |
Pestillo: |
Abajo |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
Con |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |

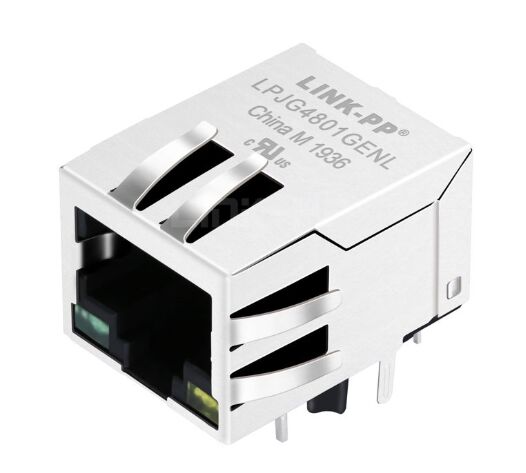

LPJG4801GENL is a single-port magnetic RJ45 connector with green/yellow LEDs, tab-down latch, EMI tabs, and 10/100/1000 Base-T support for non-PoE Ethernet designs.
| Item | Specification |
|---|---|
| Part Number | LPJG4801GENL |
| Connector Type | Magnetic Jack / RJ45 Female Connector |
| Port Count | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Right Angle, Side Entry |
| Latch | Down |
| LED Option | Green/Yellow |
| Shielding | EMI Tabs With Shield Support |
| Temperature Range | -40°C to +85°C |
| Package Size | 21.25 mm × 15.93 mm × 13.30 mm (L × W × H) |
| Item | Specification |
|---|---|
| Turns Ratio | TX = 1CT:1CT, RX = 1CT:1CT |
| Inductance | 350 µH min @ 100 kHz, 100 mV, 8 mA DC bias |
| Insertion Loss | 1~100 MHz: -1.0 dB max |
| Return Loss | 1~30 MHz: -18 dB min; 30~60 MHz: -16 dB min; 60~80 MHz: -12 dB min; 80~100 MHz: -10 dB min |
| Crosstalk | 1~30 MHz: -40 dB min; 30~60 MHz: -35 dB min; 60~100 MHz: -30 dB min |
| Common Mode Rejection | 1~50 MHz: -40 dB min; 50~150 MHz: -30 dB min |
| Isolation Voltage | 1500 Vrms |
| Operating Temperature | -40°C to +85°C |
The LPJG4801GENL is specifically designed for high-speed data transmission in various sectors:
The LPJG4801GENL is a high-performance, integrated Magnetic RJ45 Jack (MagJack) designed for Gigabit Ethernet applications. Combining superior EMI shielding with industrial-grade durability, this 10/100/1000 Base-T connector is the ideal solution for networking interfaces that require a compact footprint without compromising signal integrity.
With its 90° Right Angle orientation and Side Entry PCB mounting, it is engineered for seamless integration into routers, industrial PCs, and telecommunications equipment.
It is used as an integrated magnetic RJ45 connector for 10/100/1000 Base-T Ethernet ports in non-PoE network designs.
Yes. The product is listed with green/yellow LED options.
Yes. LINK-PP lists the mounting type as through hole.
It supports -40°C to +85°C.
