Lugar de origen: Cantón, China
Nombre de la marca: LINK-PP
Certificación: UL,ROHS,Reach,ISO
Número de modelo: LPJG49883A92NL
Documento: LPJG49883A92NL.pdf
Pago y términos de envío
Cantidad de orden mínima: 10 Uds.
Precio: $0.6-$2.2
Detalles de empaquetado: T&R
Tiempo de entrega: En el barco de existencias dentro de los 3 días
Condiciones de pago: TT, NET30/60/90 días, Western Union
Capacidad de la fuente: 5kk/mes
Número de pieza: |
LPJG49883A92NL |
Tipo de conector: |
RJ45 (10P8C) |
Tipo de producto: |
Conector RJ45 con varios puertos |
Número de puertos: |
1x4 |
Pestillo: |
Arriba |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
Con |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |
Número de pieza: |
LPJG49883A92NL |
Tipo de conector: |
RJ45 (10P8C) |
Tipo de producto: |
Conector RJ45 con varios puertos |
Número de puertos: |
1x4 |
Pestillo: |
Arriba |
Velocidad de datos: |
1000BASE-T |
PoE: |
No |
Opción LED: |
Con |
Las pestañas de EMl: |
Con |
Tipo de montaje: |
Tht |
Tipo de soldadura: |
Ola |
Rango de temperatura de funcionamiento: |
-40°C a +85°C |

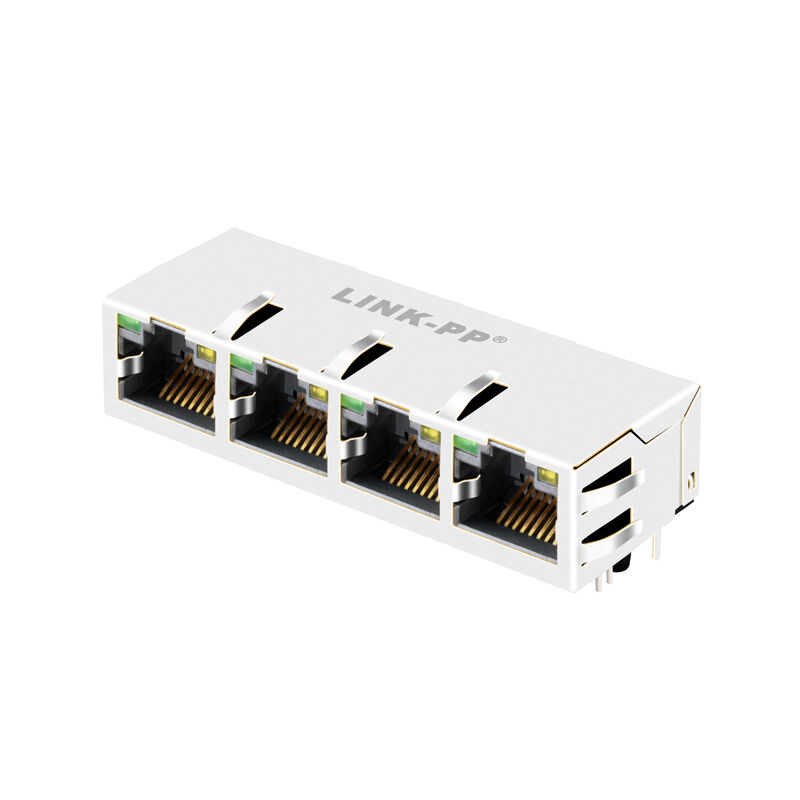

The LPJG49883A92NL is a 1x4 multi-port RJ45 connector with integrated magnetics designed for 1000Base-T Ethernet applications. It combines the RJ45 interface, magnetic components, EMI spring finger shielding, and LED indicators in one compact solution, helping simplify PCB layout, improve signal integrity, and support reliable network connectivity. According to the drawing, this model is built for non-PoE applications and uses a latch-up configuration with green/yellow LED options.
At 25°C, the LPJG49883A92NL is specified with the following performance data:
1. Turns ratio: 1CT:1CT ±5%
2. OCL: 350uH min @100KHz, 0.1V, 8mA DC bias
3. Insertion loss: -1.2 dB max from 1–100MHz
4. Return loss:
5. Crosstalk: -30 dB min from 1–100MHz
6. Common mode rejection: -30 dB min from 1–100MHz
7. Isolation PHY side to line side: 1500Vrms
8. Operating temperature range: -40°C to +85°C
| Category | Specification |
|---|---|
| Part Number | LPJG49883A92NL |
| Product Type | Multi-Port RJ45 Connector with Integrated Magnetics |
| Port Configuration | 1 × 4 (Quad Port) |
| Connector Type | RJ45 (10P8C) |
| Ethernet Speed | 1000Base-T (Gigabit Ethernet) |
| PoE Support | Non-PoE |
| Latch Orientation | Latch Up |
| LED Indicators | Green / Yellow |
| Shielding | Shielded with EMI Spring Finger |
| Mounting Type | Through-Hole (PCB Mount) |
| Operating Temperature | -40°C to +85°C |
| Compliance |
IEEE 802.3, RoHS |
| Parameter | Value |
|---|---|
| Length | 25.25 mm |
| Width | 59.2 mm |
| Height | 13.50 mm |
| Housing Material | PBT + 30% Glass Fiber (UL94V-0) |
| Contact Material | Phosphor Bronze |
| Shield Material | Stainless Steel (SUS 304) |
| Contact Plating |
Gold ≥ 6 µin |
| Color | Wavelength (nm) | Forward Voltage (VF) | Leakage Current (IR) |
|---|---|---|---|
| Green | 565 nm | 1.8 – 2.6 V | ≤ 10 µA |
| Yellow | 585 nm | 1.8 – 2.6 V | ≤ 10 µA |
The LPJG49883A92NL is a strong fit for:
