Detalles del producto
Lugar de origen: Guangdong, Huizhou
Nombre de la marca: LINK-PP
Certificación: REACH, RoHS, FCC
Número de modelo: LPJE686-0DNL
Pago y términos de envío
Cantidad de orden mínima: 1pcs, muestras gratis
Precio: $0.09-$0.8
Detalles de empaquetado: Bandeja, cinta y carrete
Tiempo de entrega: 1-3 días
Condiciones de pago: T/T, LC, CAD/D/P, OA
Capacidad de la fuente: 6000k-PC/mes
Número de pieza: |
LPJE686-0DNL |
Número de puertos: |
Puertos 2x4 apilados |
Longitud: |
57.0 mm |
Ancho: |
27.0m m |
Altura: |
16.4 mm |
Temperatura de funcionamiento: |
– 40°C a +85°C |
Número de pieza: |
LPJE686-0DNL |
Número de puertos: |
Puertos 2x4 apilados |
Longitud: |
57.0 mm |
Ancho: |
27.0m m |
Altura: |
16.4 mm |
Temperatura de funcionamiento: |
– 40°C a +85°C |

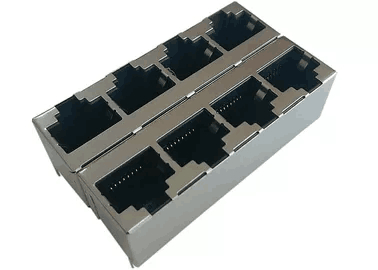

The Vertical RJ45 2×4 Connector is designed for high-density Ethernet applications requiring stable signal transmission, durable mechanical performance, and long-term reliability. It is commonly used in network switches, communication equipment, industrial controllers, and embedded Ethernet systems.
| Parameter | Specification |
|---|---|
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 50 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC, 50/60Hz, 1 min |
| Parameter | Specification |
|---|---|
| Housing Material | Glass-Filled Polyester (PBT), Black, UL94V-0 |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Flash over Nickel |
| Shield Material | Copper Alloy with Nickel Plating, 0.20 mm thickness |
| Operating Life | ≥ 750 mating cycles |
| Parameter | Specification |
|---|---|
| Storage Temperature | –40°C to +85°C |
| Operating Temperature | –40°C to +85°C |
| Wave Solder Temperature | 250°C for 5 seconds |
| UL Certification | File No. E484635 |
