Detalles del producto
Place of Origin: CHINA
Nombre de la marca: Link-pp
Certificación: RoHS compliant
Model Number: 7498111001A
Pago y términos de envío
Minimum Order Quantity: 1pcs，Free samples
Precio: $0.21 - $0.7
Packaging Details: Tray
Delivery Time: About 3 Days
Payment Terms: TT, NET30/60/90 Days, Western Union
Supply Ability: 20K Pieces per Week
Part Number: |
7498111001A RJ45 LAN Transformer |
OCL: |
350 µH min |
Turns Ratio: |
1:1 (Tx), 1:1 (Rx) |
Insertion Loss: |
-1.0 dB max. |
Base Material: |
Ferrite |
Contact Plating: |
100% Tin with Nickel |
Contact Area: |
15µ" Gold Plating |
Housing: |
Thermoplastic |
Shield: |
50µ" Nickel over 0.008" Copper Alloy |
UL 94V-0: |
Housing Support |
Part Number: |
7498111001A RJ45 LAN Transformer |
OCL: |
350 µH min |
Turns Ratio: |
1:1 (Tx), 1:1 (Rx) |
Insertion Loss: |
-1.0 dB max. |
Base Material: |
Ferrite |
Contact Plating: |
100% Tin with Nickel |
Contact Area: |
15µ" Gold Plating |
Housing: |
Thermoplastic |
Shield: |
50µ" Nickel over 0.008" Copper Alloy |
UL 94V-0: |
Housing Support |

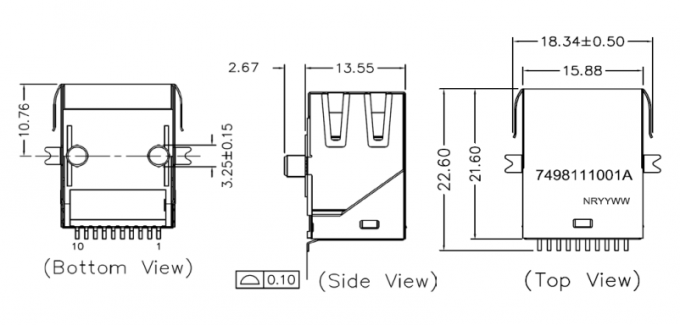

| Parameter | Value |
|---|---|
| Part Number | 7498111001A |
| Type | 1000BASE-T MagJack |

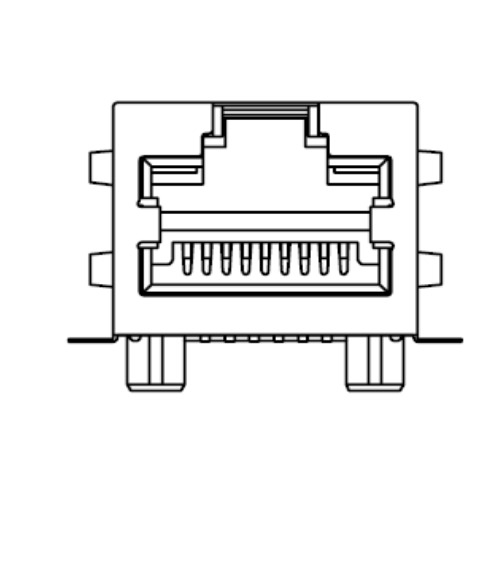

| Description | 1000Base-T RJ45 Connector with Integrated Transformer |
| PoE Support | No |
| Ports | 1 |
| Tab Direction | Up |
| LED | No LED |
| Auto MDIX | Yes |
| Operating Temp. | -40 °C to +85 °C |
| Application |
IEEE 802.3ab Compliant for 1000Base-T |

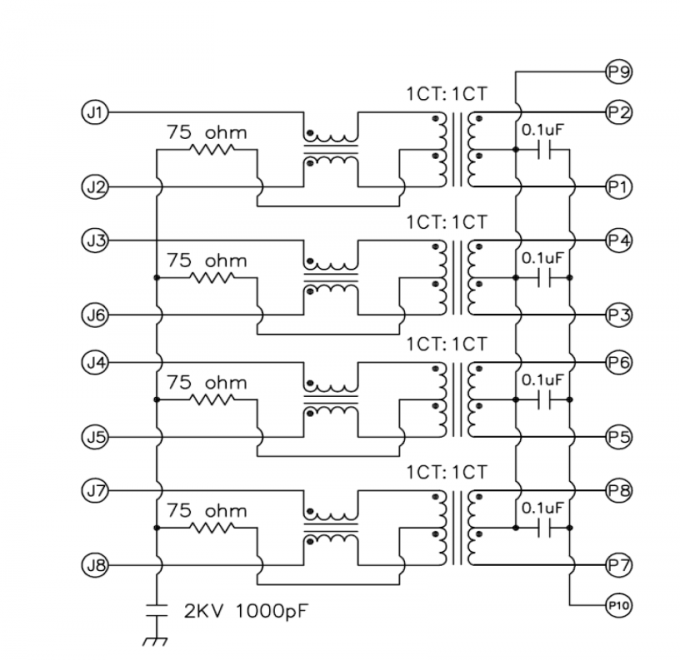

| Parameter | Specification |
|---|---|
| Inductance (OCL) | 350 µH min @ 100 kHz, 100 mV, 8 mA DC Bias |
| Turns Ratio (TR) | 1:1 (TX), 1:1 (RX) @ 100 kHz / 100 mV |
| Insertion Loss (IL) | -1.0 dB max (1–100 MHz) |
| Return Loss (RL) | -18 dB min (1–30 MHz) -15 dB min (30–60 MHz) -12 dB min (60–80 MHz) -10 dB min (80–100 MHz) |
| Common Mode Rejection (CMR) | -35 dB min (1–30 MHz) -30 dB min (30–100 MHz) |
| Crosstalk (CT) | -37 dB min (1–30 MHz) -32 dB min (30–60 MHz) -27 dB min (60–100 MHz) |
| Hi-Pot Test Voltage | 1500 Vrms, 1 min |
