Hogar > productos > Conector RJ45 de POE > Poder de LPJ4514GENL 1x Rj45 sobre Ethernet, 90 grados YA MONTADO 10/100Mbps IEEE802.3af

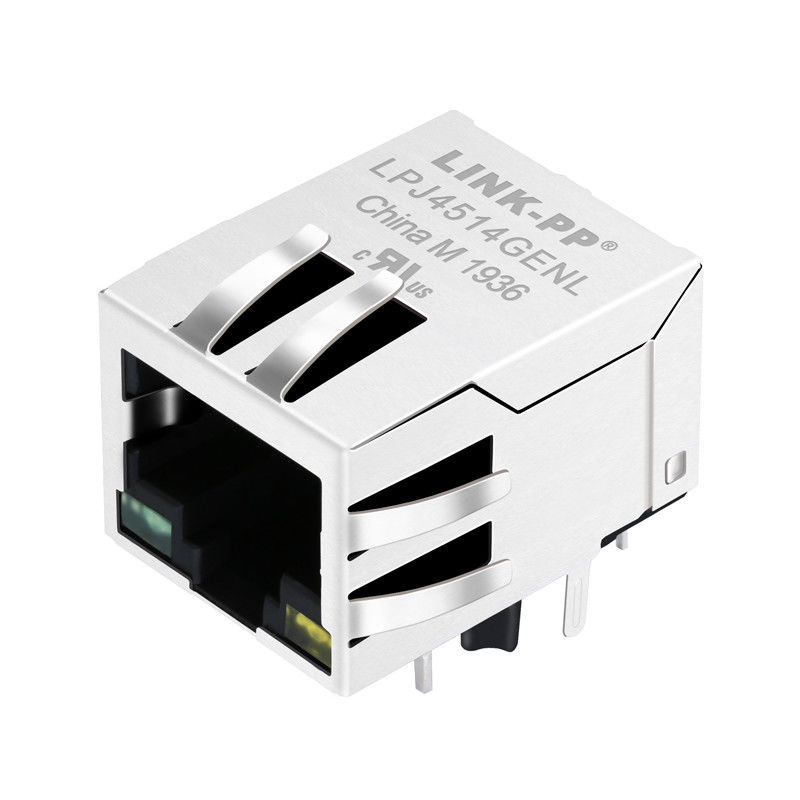

Poder de LPJ4514GENL 1x Rj45 sobre Ethernet, 90 grados YA MONTADO 10/100Mbps IEEE802.3af

Detalles del producto

Lugar de origen: Guangdong, China

Nombre de la marca: LINK-PP

Certificación: ISO9001,SGS,UL,CE,REACH

Número de modelo: LPJ4514GENL

Pago y términos de envío

Cantidad de orden mínima: 50/500/1000/25K

Precio: $0.09-$1.85

Detalles de empaquetado: 60PCS/Tray, 22Trays=1320pcs/Carton=37*30*30CM=10KG

Tiempo de entrega: Común

Condiciones de pago: TT, días NET30/60/90

Capacidad de la fuente: 3000000/mes

Consiga el mejor precio
Alta luz:

pinout del poe rj45

,

Enchufe dual Rj45

Especificación:
LPJ4514GENL
No parte:
LPJ4514GENL
Ethernet:
Ethernet del poder 1x 10/100
Dé vuelta al ratio:
1:1
Montaje:
Escudo YA MONTADO
muestras:
Disponible
Especificación:
LPJ4514GENL
No parte:
LPJ4514GENL
Ethernet:
Ethernet del poder 1x 10/100
Dé vuelta al ratio:
1:1
Montaje:
Escudo YA MONTADO
muestras:
Disponible
Poder de LPJ4514GENL 1x Rj45 sobre Ethernet, 90 grados YA MONTADO 10/100Mbps IEEE802.3af
Poder de LPJ4514GENL 1x Rj45 sobre Ethernet, 90 grados YA MONTADO 10/100Mbps IEEE802.3af

Especificación
Número de parte
Fabricante
Descripción
LPJ4514GENL
LPJ4514GENL
LINK-PP
1x 10/100, Rj-45 POE YA MONTADO, W/LED
Serie
Tipo del conector
Usos
Tipo del montaje
Los conectores, interconectan
LINK-PP Rj45
10/100 poder
Por-agujero
Orientación
Terminación
Color del LED
El proteger
Ángulo del 90° (correcto)
Soldadura
Verde/amarillo
Protegido, EMI-finger
  • 1 x 10/100 Ethernet de Mbit
  • Ratio de la vuelta del 1:1
  • Poder sobre el módulo del Magnetics de Ethernet Rj45
  • Zócalo protegido RJ45
  • Escudo de ángulo recto Jack
  • Por-agujero
  • IEEE 802.3af
  • Flexible del indicador del LED diseñado
  • LPJ4514GENL.pdf
Poder de LPJ4514GENL 1x Rj45 sobre Ethernet, 90 grados YA MONTADO 10/100Mbps IEEE802.3af 0



RATIO 1.TURNS (el ±5%):
TX=1CT: 1CT RX=1CT: 1CT
2.HI-POT: 1500Vrms
PÉRDIDA 3.INSERTION:
-1.2dB MAX @ 1-100MHz
PÉRDIDA 4.RETURN:
MINUTO @ 1-30MHz de -16dB
MINUTO @ 40MHz de -14dB
MINUTO @ 50MHz de -13dB
MINUTO @ 60-80MHz de -12dB
CHARLA 5.CROSS:
MINUTO @ 30MHz de -43dB
MINUTO @ 60MHz de -37dB
MINUTO @ 100MHz de -33dB
6.DCMR:
MINUTO @ 30MHz de -50dB
MINUTO @ 60MHz de -43dB
MINUTO @ 100MHz de -35dB
7.OCL: minuto 350uH
@0.1MHz 0.1Vrms con prejuicio de 8mA DC
gama de temperaturas 8.Operating: 0℃ a +70℃
9.Design para dirigir 600mA DC para POE 802.3af.
